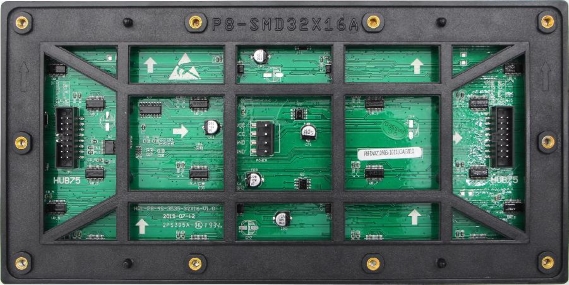

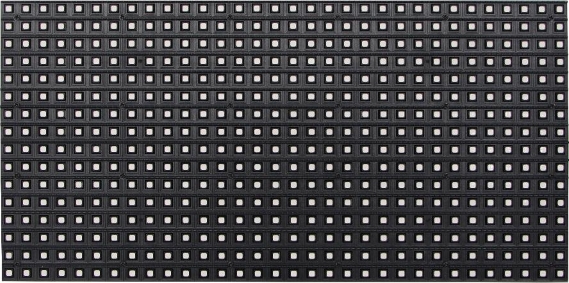

P8 Outdoor Full Color Display SMD3535


Previous Next

Detailed introduction

分项 Item

技术参数 Technical parameter





Panel

单元板尺寸 Dimension

W256*128mmH

点间距离  Pixel pitch

8mm

物理密度  Pixel Density

15625/ M2

发光点颜色 Pixel configuration

1R1G1B

灯体     LED specification

SMD3535

单元板分辨率 Pixel resolution

W32*16H

单元板平均功率 Average power

12W

单元板电流 Panel current

5.5A

单元板重量 Panel weight

0.28KG







箱体 Cabinet&Bracket

托架

湿度  Humidity

 10%-95%RH

每平方米单元板数量 Number of unit boards per square meter

30.5

单元板接口 Hub connecting

HUB75

最佳视角 Best viewing angle

Horizontal >170  Vertical>120

最佳视距 Best viewing distance

5-80M

工作温度 Working temperature

-20-+60

单元板供电 Panel power supply

5V40A

屏体供电   Screen power supply

220VAC/50HZ+_10%

最大功率   Max power

<1000W/m2

平均功率   Average power

350W

电源使用数量  power quantity

200W/6PCS



Technical parameter

驱动器件 Driving device

16208Constant current drive

扫描方式 Drive type

1/4Scanning

刷新频率 Refresh frequency

1920HZ/S

显示颜色 Display color

4096*4096*4096

亮度     Brightness

5500cd/M2

使用寿命 Life span

100000Hours

通讯距离 Communication distance

<100M


Product characteristics

★ The standard universal 256 * 128mm size display module is adopted.

★ High quality lamp beads, after multiple high and low temperature experiments and scanning layer instrument detection, cost-effective, stable performance.

★ Common boxes between the standard modules, shorten the customer delivery period, customers in the replacement of different point spacing products steel structure can be universal;

 Products with high brightness, high refresh, high protection level, suitable for outdoor media advertising and other occasions.

★ Independent research and development of the production of kits, mask, vertical and horizontal reinforcement design, efficient dust protection, uniform ink color, solid flat, ultraviolet resistance module kit, to ensure the screen body flat without deformation, display effect is better.

★ Outdoor HD LED display mature products, various specifications leading the industry, there are mature cases around the world.

★ Modular design, low installation and maintenance cost, fast speed, and can be live hot plug.

★ Camera, wired, 3G, WIFI technology, cloud broadcast control, full network access and other mature optional supporting solutions. Support mainstream format playback and support DVI HDMI 3G / HD / SD three-speed SDI HD display mode. Broadcast level color gamut, color temperature and brightness intelligent adjustable, uniform color, high contrast, beautiful and natural picture.

★ Mainly used in outdoor advertising media, government and enterprise engineering, cultural tourism, sports competition, image publicity, commercial real estate fields.
