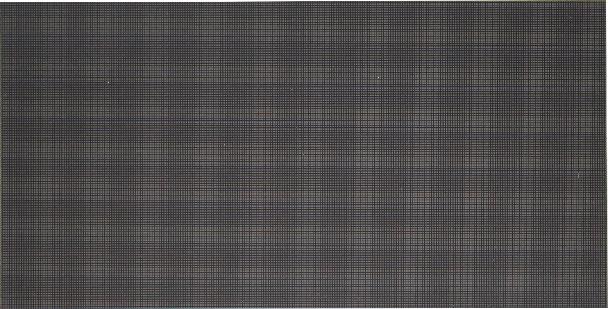

P1.538 Indoor Full Color Display SMD1212(Light steel version)


Previous Next

Detailed introduction

模组

Unit Module

项目           Item

参数 Parameter

产品型号       Model Number

P1.538-52S

模组尺寸       Module size

320*160mm

物理点间距     Pixel pitch

1.538mm

物理密度       Pixels Density

422500/m2

发光点颜色     Pixel configuration

1R1G1B

LED封装       Package mode

SMD1212

模组分辨率     Pixel resolution

208dots(W)* 104dots(H)

最佳视距       Best viewing distance

2M20M

单元板电流     Panel current

4-4.5A

模组最大功耗   Max Power

20W

模组厚度    Module thickness

12mm

模组重量       Weight

0.62KG

驱动方式       Drive type

2065恒流驱动Constant drive

扫描方式       Scan mode

1/52扫描 1/52Scan

接口方式       Port type

HUB75

白平衡亮度     Brightness of white balance

400cd/

刷新频率       Refresh frequency

3840HZ


The Product Characteristic Description:

Using 1.538mm ultra-small point spacing, to achieve ultra-high resolution in the household, presenting a breathtaking high-definition image effect. With the characteristics of a wide perspective, no matter from the up and down left and right to watch, the color is still real, gorgeous, to meet the needs of different angles to watch. Using three-in-one LED, RGB mixed color effect is good, make the color performance more gorgeous, more realistic image.

 Screen body occupies small volume, light box weight, indoor high density full color screen, display image is exquisite and realistic, table paste packaging technology, uniformity, brightness, good visual Angle, to achieve quick installation and disassembly, save your precious time and labor costs.

◆LED lamp The 1212 fog face black lamp with the high-grade chip package of the global famous manufacturers fully guarantees the service life and display quality of the display screen.

◆ drive IC Using the high refresh rate, high gray scale constant current drive IC, excellent drive performance, stable and reliable.

◆PCB board Multi-layer circuit design is adopted to ensure the uniform current distribution of the lamp board, good heat dissipation, prevent the occurrence of color blocks under low gray level conditions, and enhance the anti-electromagnetic interference ability.

◆ connector Use high quality 1U gold-plated connector, no wiring connection in the box, stable and reliable.

◆ Drive and control Special 16 BIT high gray scale, high refresh drive constant flow IC, unique hidden shadow circuit, protect LED, prevent wave leakage
